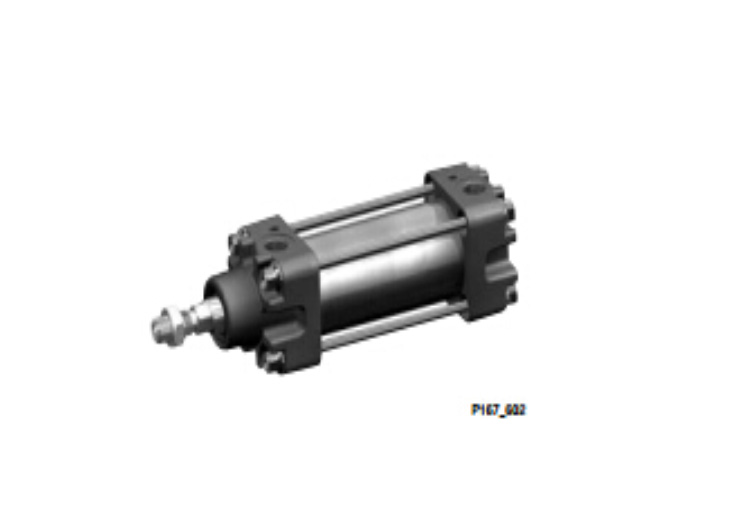

拉杆气缸ISO 6431,167-53系列

微信公众号：	上海抚御机电设备有限公司
手机：	17701700038
座机：	021-6271-0825
FAX：	021-6271-0826
邮箱：	zymelone@163.com
客服qq：

双作用式 ► 缓冲: 气动, 可调节的 ► 活塞杆: 外螺纹 ► 抗热的

产品描述：标准 ISO 6431

工作压力范围 1,5 bar / 10 bar
环境温度范围 -20°C / +120°C
介质温度范围 -20°C / +120°C
介质 压缩空气
颗粒大小 max. 50 µm
压缩空气中的含油量 0 mg/m³ - 5 mg/m³
确定活塞推力的压力 6 bar
 气缸管子  铝材, 阳极氧化处理
活塞杆  不锈钢, 镀铬
前端盖板  铝材
后盖  铝材
密封  氟-树胶

Ø	AM	Ø B h12	BG	C	CC	EE	KK	Ø MM	NV	P	PJ	RT
25	22	23	12	8	20,0	G 1/8	M10x1,25	12	10	–	58	M5
32	22	25	12	10	27,5	G 1/8	M10x1,25	12	10	4	65	M5
40	24	35	15	13	30,0	G 1/4	M12x1,25	16	13	4	69	M6
50	32	40	15	15	30,0	G 1/4	M16x1,5	20	17	4	72	M6
63	32	40	19	14	34,0	G 3/8	M16x1,5	20	17	6	79	M8
80	40	48	19	16	36,0	G 3/8	M20x1,5	25	22	9	86	M8
100	40	55	23	16	40,0	G 1/2	M20x1,5	25	22	12	100	M10



...Ø	TG	TS 1)	V	VD	WH	ZB	ZD
...25	27	+2/–1	–	16	24	98 ±1,2	74
...32	32	+2/–0	5	16	26	120 ±1,2	94
...40	40	+2/–0	5	20	33	132 ±1,2	99
...50	46	+2/–0	6	23	38	142 ±1,2	104
...63	59	+2,5/–0	6	27	41	154 ±1,4	113
...80	73	+2,5/–0	8	32	48	172 ±1,4	124
...100	90	+2,5/–0	8	37	53	187 ±1,4	134
